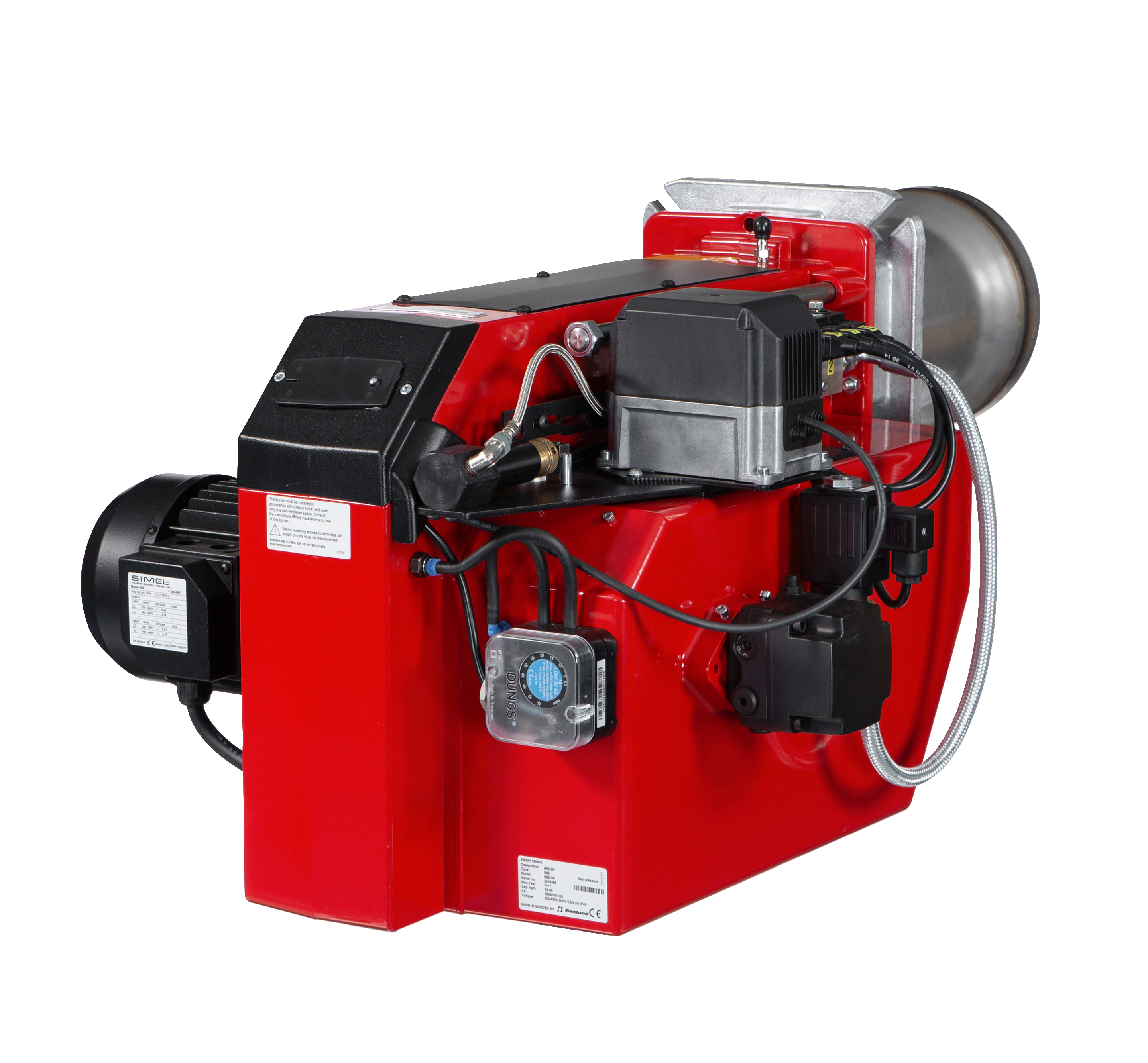

Bentone B65


B65 is an industrial burner designed for industrial applications but can also be used for heating in commercial buildings.

Capacity: 21-99,5 kg/h (250-1180 kW)

The burner can function as a 2-stage or 3-stage burner. The 2-stage burner is equipped with two nozzles for efficiency control. The 3-stage burner has 3 nozzles for for efficiency control. Electronic thermostat is recomended when using the 3-stage regulation.

Hydraulic adjustment of the nozzle assembly is optional

Advantages
  • Energy saving and compatible with environmental requirements
  • Quiet in operation and designed for easy maintenance
  • Reliable and trouble free
  • Designed and approved in accordance with the European standard EN 267
  • Suitable for high resistance and condensing boilers
  • Industry standard components easily available
  • Plug-in contact facilitates the installation
  • Low fuel consumption
  • Available with hydraulic air adjustment or airdamper motor
  • Available in several standard models, and approved for RME
  • Available according to Annex J/K IP54
Models
Model Art. No. Information
Bentone B65-2670003967601Capacity: 22-99,5 kg/h (260-1180 kW)
Bentone B65-2H670004167601Capacity: 22-99,5 kg/h (260-1180 kW)
Bentone B65-3R680001268601Capacity: 24-99 kg/h (285-1170 kW)
Accessories
Double-pole thermostat for operation Art. No.:
12076001
Flowmeter for oil VZ08 1/4" Art. No.:
11921602
Vacuum Meter Art. No.:
11985301
Single-pole thermostat for control Art. No.:
12075901
Hose for oil G3/8" 1500 G3/8" Art. No.:
01760012
Electronic power controller Art. No.:
11978203
Nipple R1/4”xG3/8” Art. No.:
11027901
Nipple R3/8”xG3/8” Art. No.:
11027902
Oil de-aerator Twin Art. No.:
11748903
Flowmeter for oil VZ0 1/8" without pulse contact Art. No.:
119212606
Liquid pressure gauge Art. No.:
11031805
Oil filter ½” Art. No.:
11429304
Solenoid valve kit for continuous operatation (protecting the burner head) Art. No.:
11923003
