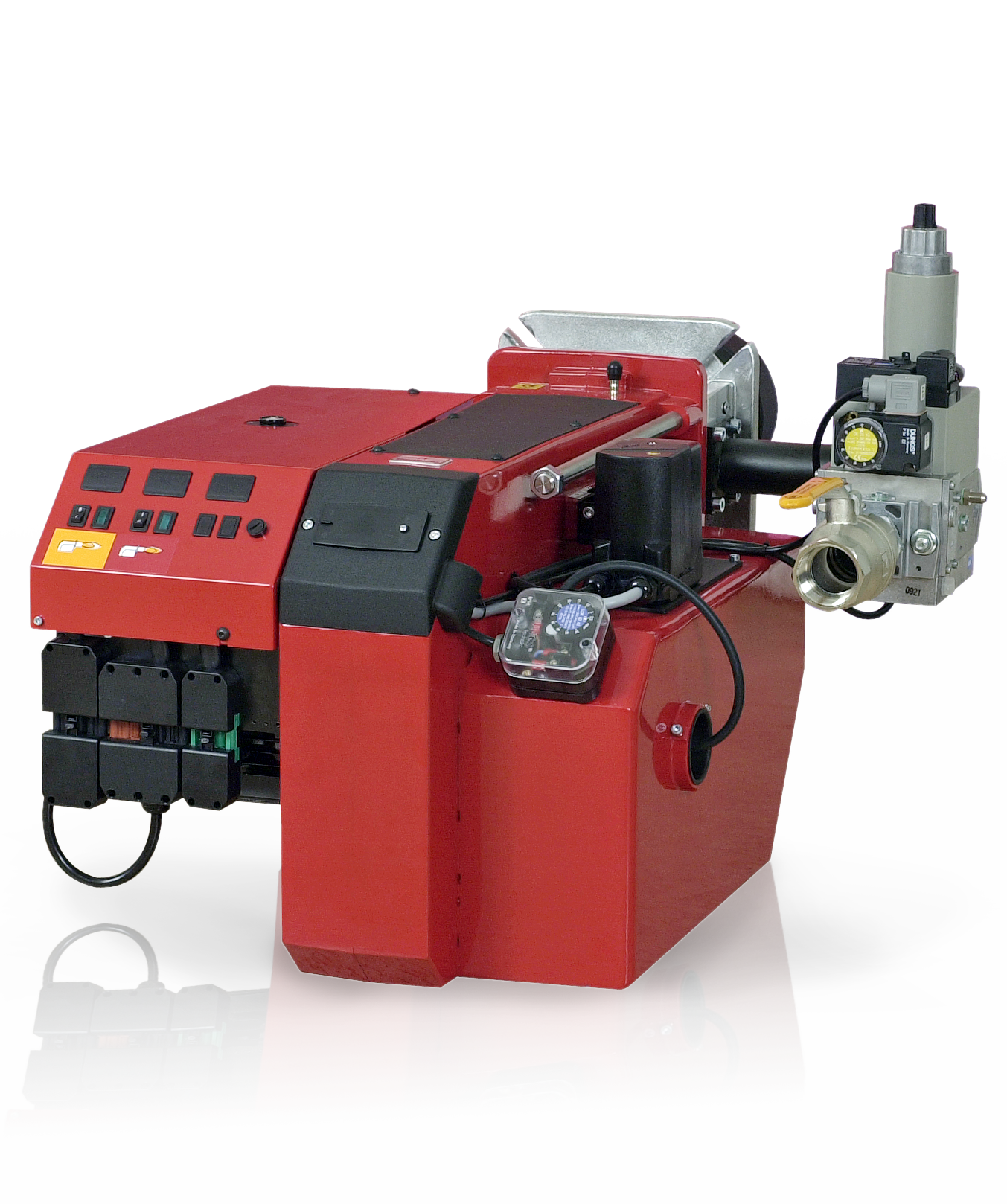

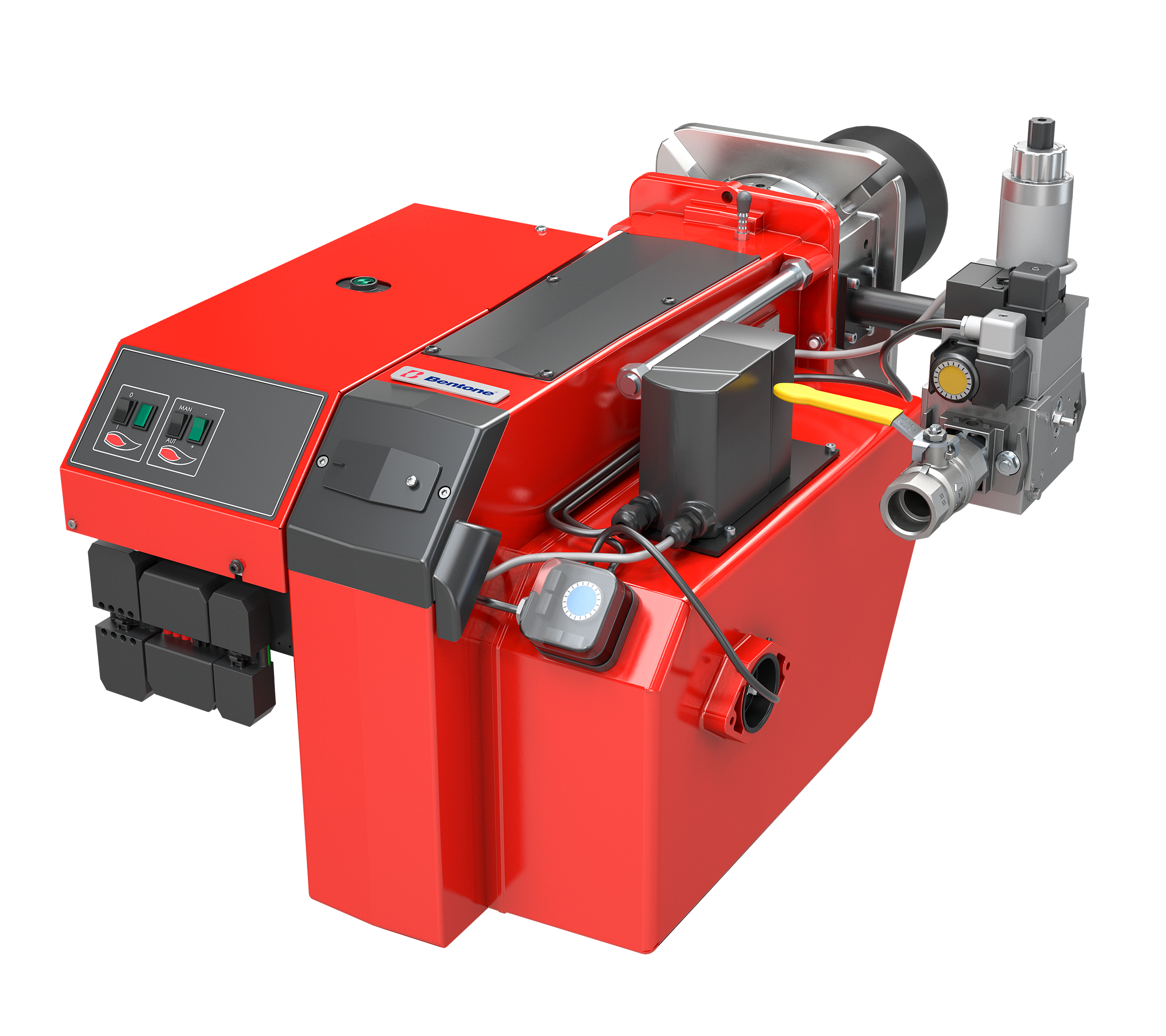

Bentone BG550


Available in versions up to 628 kW. 2-stage or modulating. Can be obtained for all types of gas.

When changing from one type of gas to another only a few components need replacing. Mounted on guide bars. Slow opening solenoid valve. Gas connection left or right. Recom-mended for over- and underpressure boilers. Designed for easy maintenance. Energy saving.

Also available in biogas versions.
Biogas will affect the output and the compo-nents of the burner. Please contact Bentone for more information about biogas operation.

Available with LMV burner management system or standard burner control systems.

Advantages
  • User friendly display control
  • Electronic ratio-control between air and fuel
  • Build-in leakage control (VPS)
  • Communication to main control unit (superior system) via modbus
Models
Model Art. No. Information
BG550 LMV820006382606Capacity: 140,0 - 626,0 kW, Gas: LPG+Natural, Multiblock: MB-D412, B01S52
BG550 LMV820006482607140,0 - 628,0 kW
BG550-2820004482601140,0 - 628,0 kW
BG550-2820004782601140,0 - 628,0 kW
BG550-2820004982602140,0 - 628,0 kW
BG550-2820005082602140,0 - 628,0 kW
Accessories
Spring for regulator Art. No.:
12106402
Gas fi lter Art. No.:
11395413
Diaphragm 15 mm Art. No.:
11910202
Pressure gauge 0-60 mbar Art. No.:
91540905
Pressure gauge 0-160 mbar Art. No.:
91540907
UV-detector QRA2 Art. No.:
91463401
Power regulator RWF50.20A9 LMV (three position output) Art. No.:
92102601
Modbus Unit OCI412.10 Art. No.:
92101901
Power monitor QPL25 LMV Art. No.:
11950702
Power regulator RWF50.30A9 LMV 4-20Ma Art. No.:
92102602
Valve, leak tester VPS 504SO2 Art. No.:
11861701
Time meter Art. No.:
11767801
