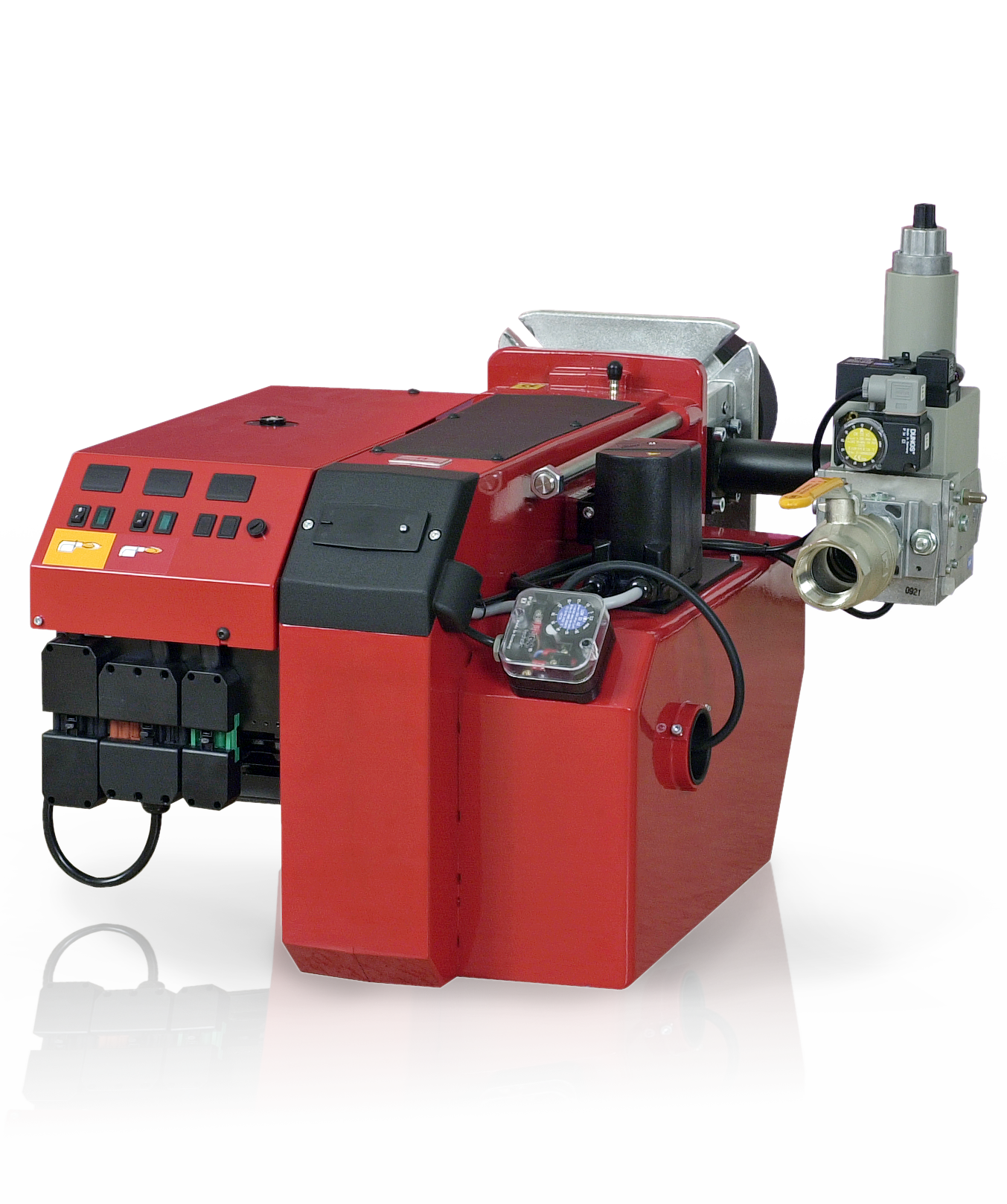

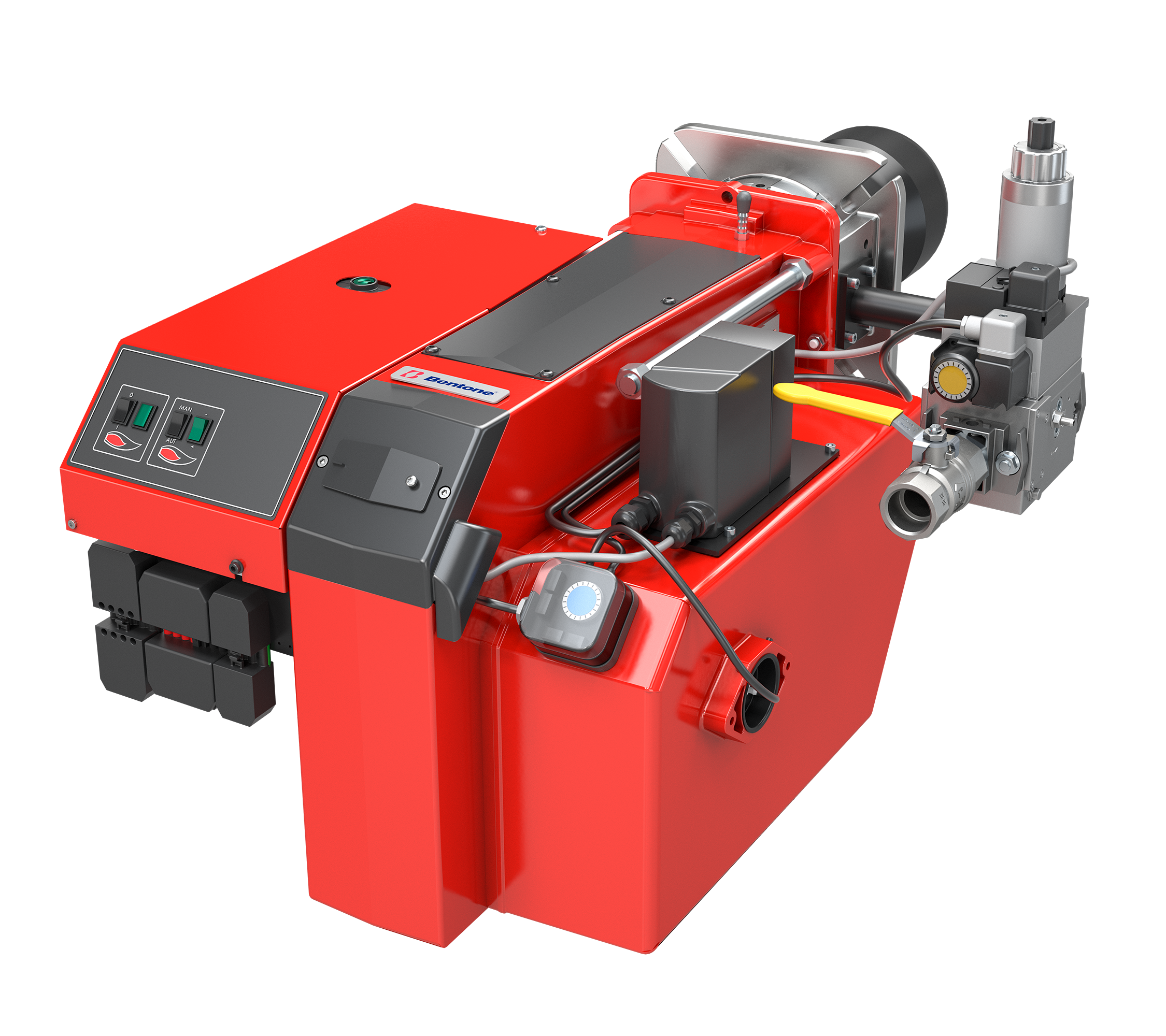

Bentone BG650


Available in versions up to 1125 kW. 2-stage or modulating. Can be obtained for all types of gas.

When changing from one type of gas to another only a few components need replacing. Mounted on guide bars. Slow opening solenoid valve. Gas connection left or right. Recom-mended for over- and underpressure boilers. Designed for easy maintenance. Energy saving.

Also available in biogas versions.
Biogas will affect the output and the compo-nents of the burner. Please contact Bentone for more information about biogas operation.

Available with LMV burner management system or standard burner control systems.

Advantages
  • User friendly display control
  • Electronic ratio-control between air and fuel
  • Build-in leakage control (VPS)
  • Communication to main control unit (superior system) via modbus
  • Designed and approved in accordance with the European standard EN 676
  • 2-stage or modulating
  • Plug-in contact facilitates the installation
  • Two valves, slow opening
  • Gas connection left or right
  • Available for natural gas, LPG town gas, biogas
  • When biogas is used, Bentone shall always be contacted
Models
Model Art. No. Information
BG650 LMV830008283611200,0 - 1125,0 kW
BG650 LMV830008083610200,0 - 1125,0 kW
BG650 LMV830008183610200,0 - 1125,0 kW
BG650-2830005083601200,0 - 1125,0 kW
BG650-2830005283601200,0 - 1125,0 kW
BG650-2830005583602200,0 - 1125,0 kW
BG650-2830005483602200,0 - 1125,0 kW
BG650-2830005983607200,0 - 1125,0 kW
BG650-2830005883607200,0 - 1125,0 kW
Accessories
Diaphragm 15 mm Art. No.:
11910202
Spring for regulator Art. No.:
12106402
Pressure gauge 0-60 mbar Art. No.:
91540905
Gas fi lter Art. No.:
11395413
UV-detector QRA2 Art. No.:
91463401
Power regulator RWF50.20A9 LMV (three position output) Art. No.:
92102601
Modbus Unit OCI412.10 Art. No.:
92101901
Power monitor QPL25 LMV Art. No.:
11950702
Power regulator RWF50.30A9 LMV 4-20Ma Art. No.:
92102602
Valve, leak tester VPS 504SO2 Art. No.:
11861701
Time meter Art. No.:
11767801
