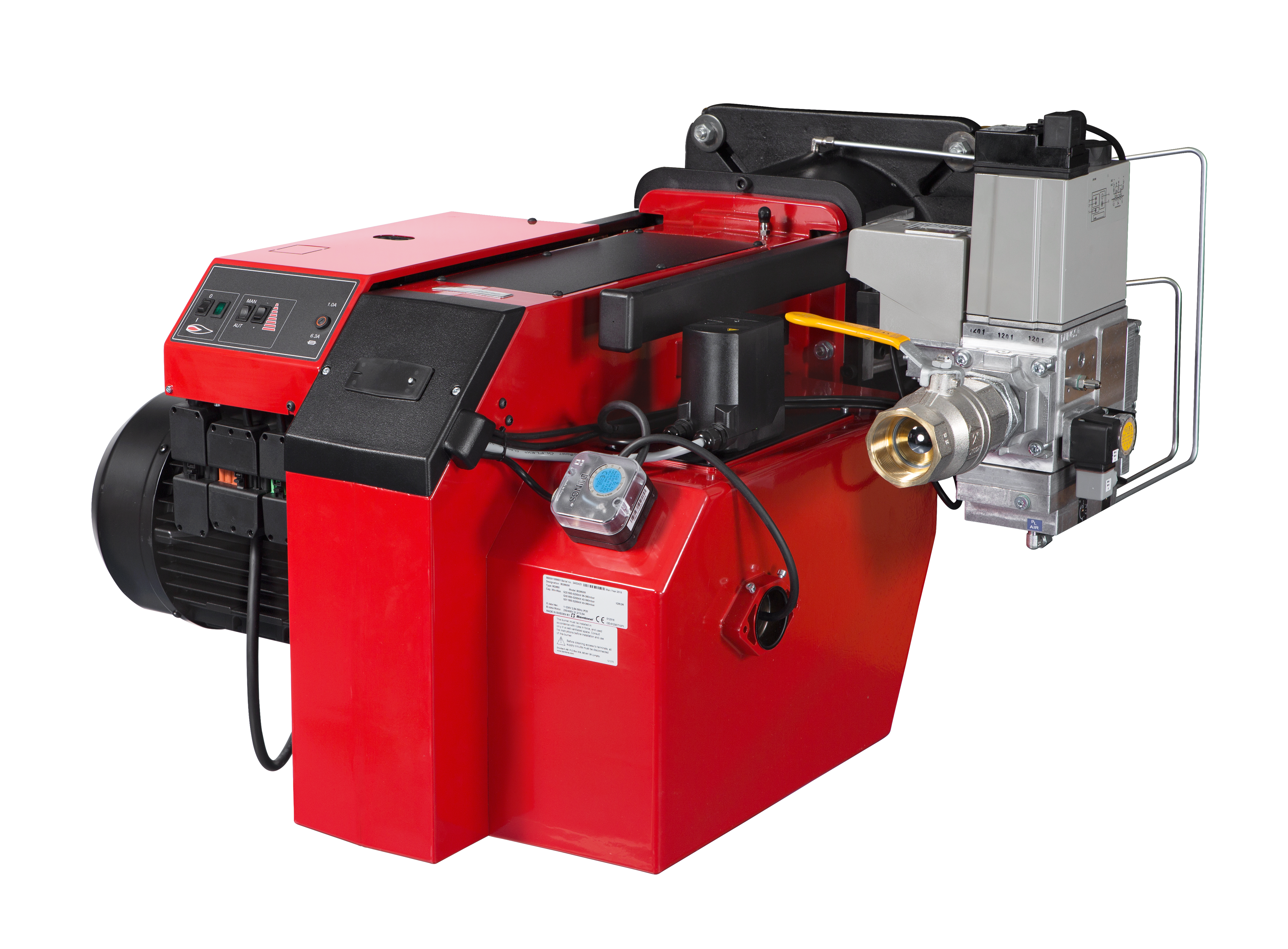

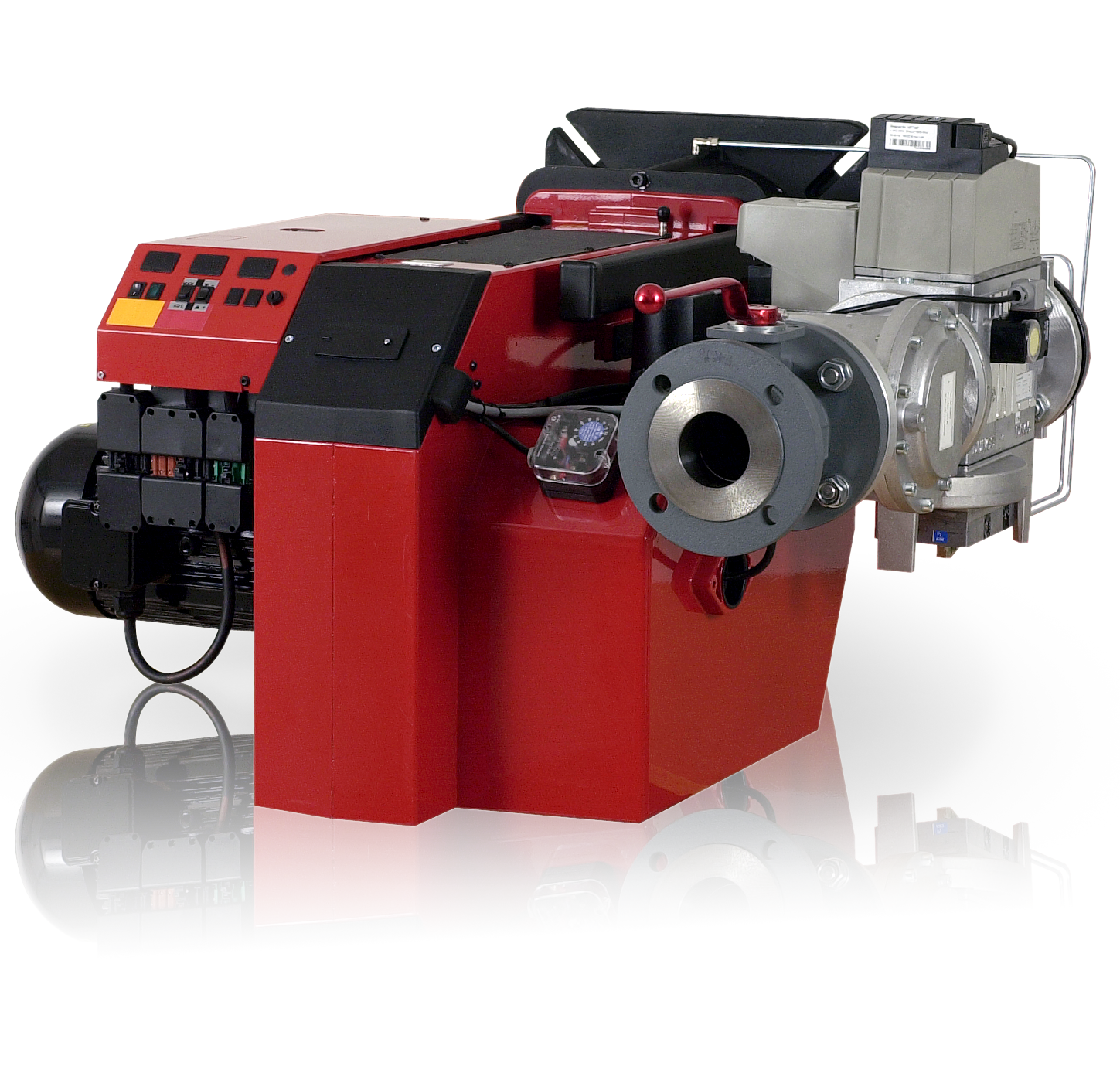

Bentone BG950


Available in versions up to 3200 kW. 2-stage or modulating. Can be obtained for all types of gas.

When changing from one type of gas to another only a few components need replacing. Mounted on guide bars. Slow opening solenoid valve. Gas connection left or right. Recom-mended for over- and underpressure boilers. Designed for easy maintenance. Energy saving.

Also available in biogas versions.
Biogas will affect the output and the compo-nents of the burner. Please contact Bentone for more information about biogas operation.

Available with LMV burner management system or standard burner control systems.

Advantages
  • User friendly display control
  • Electronic ratio-control between air and fuel
  • Build-in leakage control (VPS)
  • Communication to main control unit (superior system) via modbus
  • Designed and approved in accordance with the European standard EN 676
  • 2-stage sliding or modulating
  • Plug-in contact facilitates the installation
  • Main and safety valve
  • Gas connection left or right
  • Available for natural gas, LPG
Models
Model Art. No. Information
BG950850001385601500,0 - 3200,0 kW
BG950850001485602500,0 - 3200,0 kW
BG950 LMV850002085606500,0 - 3200,0 kW
Accessories
Spring for regulator Art. No.:
12106402
Gas filter GF4006513 DN65 Art. No.:
11395417
Pressure gauge 0-160 mbar Art. No.:
91540907
Gas filter Art. No.:
11395416
Gas filter GF40080/3 DN80 Art. No.:
11395418
