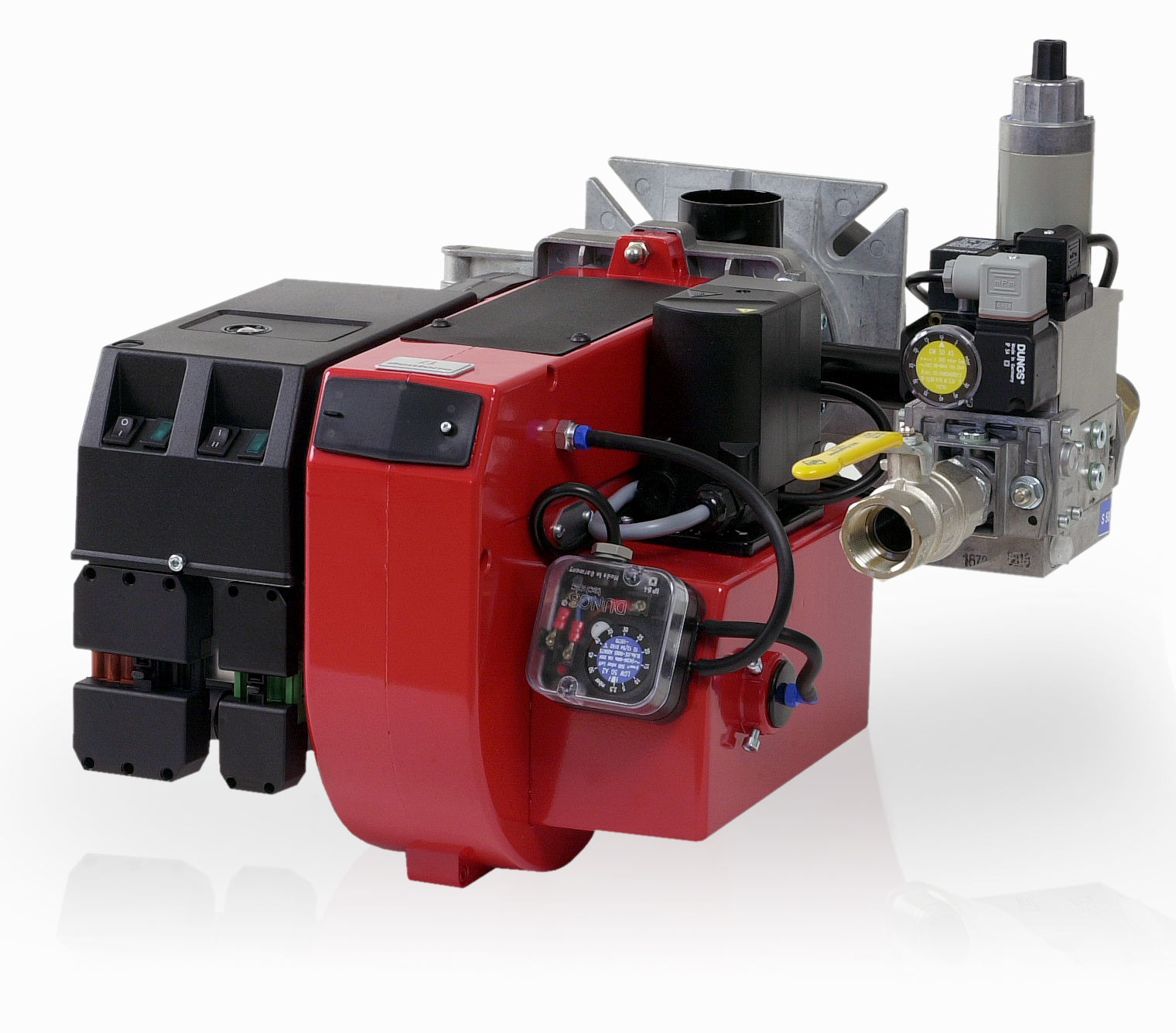

Bentone BG 300


Bentones family of intermediate burners are well designed and robust burners aimed for an industrial process or heating of a semi large commercial building. For many years these burners has been the backbone of Bentone and we have constantly modernized our burners to meet the new demands of modern regulations and lower NOx levels.

Capacity: 45-200 kW

Our range of intermediate burners were initially
designed for boilers but are also widely used in
ovens as they are approved according to EN 676
and EN 746-2. Annex J/K are mandatory supplements
of the EN 746-2 regulation which covers industrial
ovens, kilns and steam boilers.

Ecodesigned approved according to class 5 (ErP)

Advantages
  • Energy saving
  • Low fuel consumption
  • Compatible with environmental requirements
  • Designed for easy maintenance
  • Approved according to EN 676
  • Available for Natural Gas, LPG and Biogas
  • Available with LMV37
  • Available according to Annex J/K
Models
Model Art. No. Information
Bentone BG 300 L LME11710000571601Capacity: 60,0 - 190,0 kW
Bentone BG 300 L145 LME11 407BO1710000171601Capacity: 60,0 - 190,0 kW
Bentone BG 300 LME11 BIOGAS710001271602Capacity: 60,0 - 190,0 kW
Bentone BG 300 M BP-S2 JK IP40720003472605Capacity: 60,0 - 190,0 kW
Bentone BG 300 M LME22720000272601Capacity: 60,0 - 190,0 kW
Bentone BG 300 M LME22 R316M720002272603Capacity: 60,0 - 190,0 kW
Bentone BG 300 ML LME22720002872602Capacity: 60,0 - 190,0 kW
Bentone BG 300-2 L LME22720001172601Capacity: 60,0 - 190,0 kW
Bentone BG 300-2 LME22720002072604Capacity: 60,0 - 190,0 kW
Bentone BG 300-2 LME22720000172601Capacity: 60,0 - 190,0 kW
Accessories
Gas filter 1 1/2 " Art. No.:
11395415
Diaphragm 10 mm Art. No.:
11910201
Pressure gauge 0-60 mbar Art. No.:
91540905
UV-detector QRA2 Art. No.:
91463401
Amplifier AGQ1.2A27 LGB/UV Art. No.:
11898301
Amplifier AGQ2.2A27 LMG/UV Art. No.:
11898302
Time meter Art. No.:
11767801
