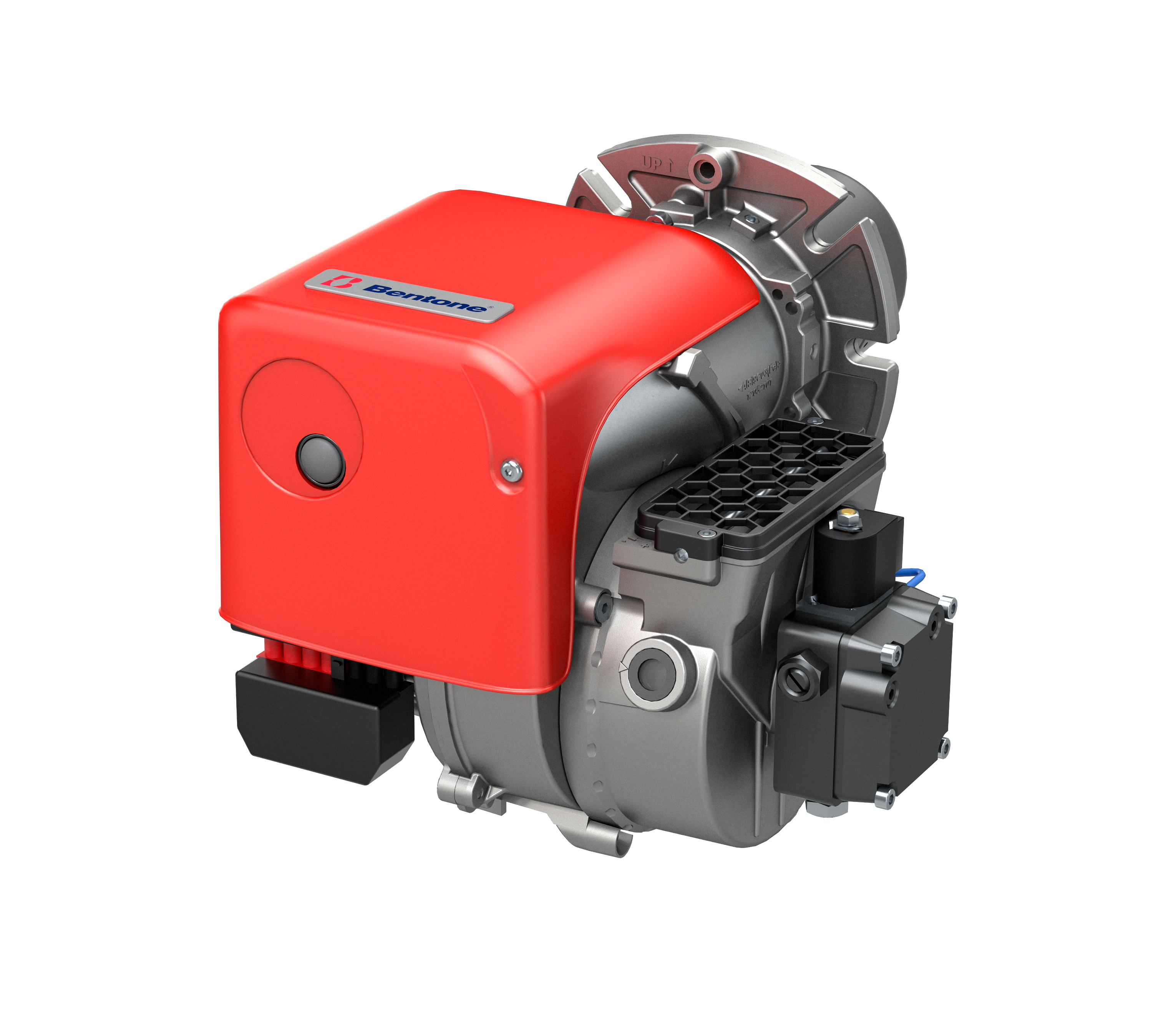

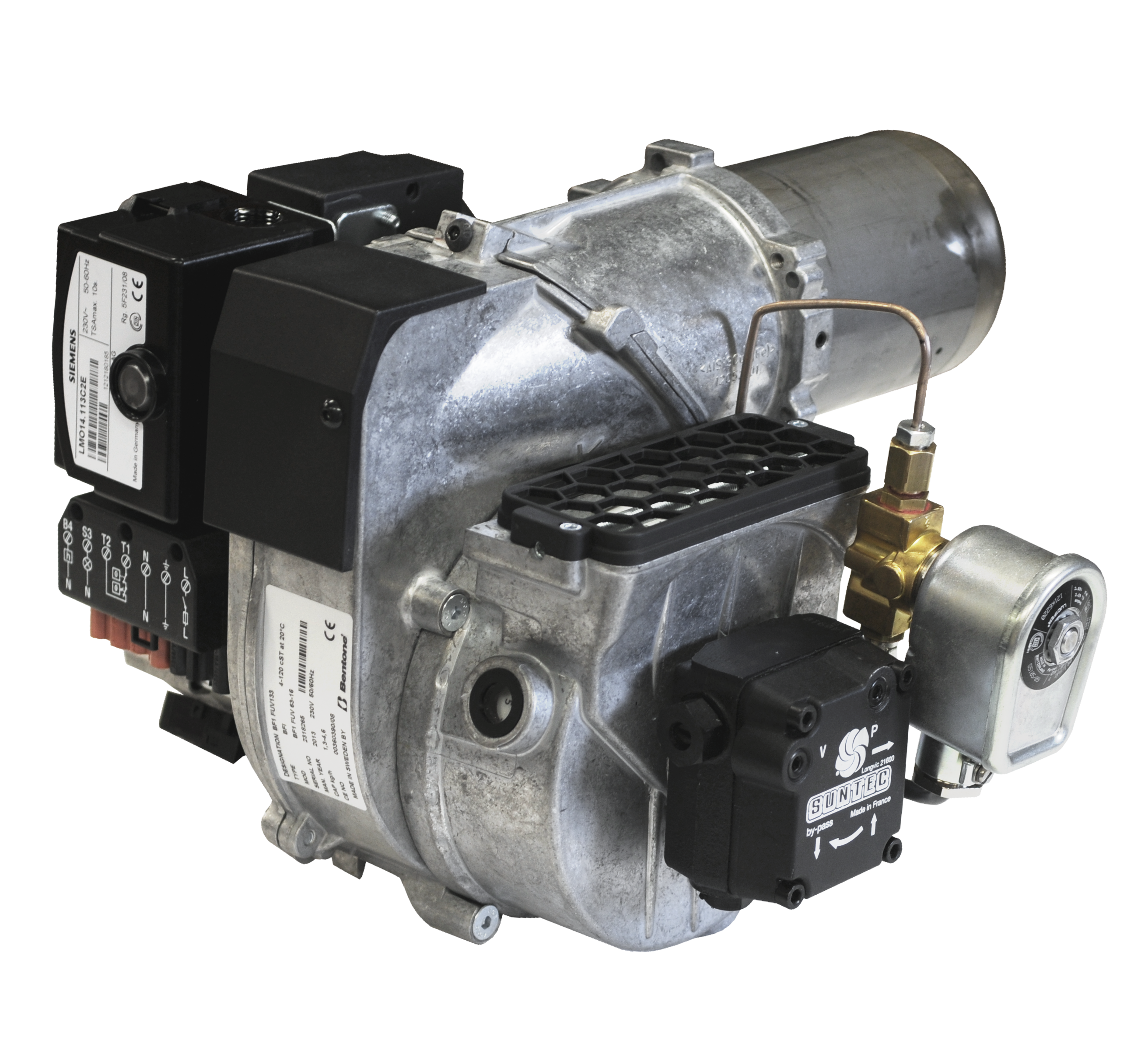

Bentone BF1


Available in many versions up to 7,6 kg/h. With or without preheating. Ducted or conventional air inlet.

Suitable for high resistance/condensing boilers. Designed for 1- stage or 2- stage operation. High flexibility with reference to different options.
Burners marked * is also available for RME oil.

Advantages
  • Energy saving and compatible with environmental requirements
  • Designed for easy regulation and maintenance
  • Reliable and trouble free
  • Designed and approved in accordance with the European standard EN 267
  • Suitable for High Resistance/ Condensing boiler
  • Industry standard components easily available
  • Designed for on/off and 2-stage operation
  • Plug-in contact facilitates the installation
  • High flexibility with reference to different options
Models
Model Art. No. Information
BF1 FU351012010601Capacity: 1,3 - 4,6 kg/h. Controls: LMO14
BF1 FUV352012020601Capacity: 1,3 - 4,6 kg/h. Controls: LMO14
BF1 FUV HC352012021601Capacity: 1,3 - 4,6 kg/h. Controls: LMO14
BF1 FUV RME352012044601
BF1 K3510430106013,8 - 8,0 kg/h
BF1 K HC3510430116013,8 - 8,0 kg/h
BF1 KA3510230106012,1 - 6,3 kg/h
BF1 KA HC3510230116012,1 - 6,3 kg/h
BF1 KAV3520230106012,1 - 6,3 kg/h
BF1 KV3520430106013,8 - 8,0 kg/h
BF1 KV HC3520430116013,8 - 8,0 kg/h
BF1 KV RME352043024601
BF1-2 K HC3530430116013,8 - 8,4 kg/h
BF1-2K3530430106013,8 - 8,4 kg/h
Accessories
Automatic air damper Art. No.:
12065601
Hose for Bio-oil G1/4" 900 G1/4" Art. No.:
12083005
Airduct, Ø= 68 mm Art. No.:
12050001
Airduct, Ø= 78 mm Art. No.:
12053401
Double-pole thermostat for operation Art. No.:
12076001
Airduct, Ø= 48 mm Art. No.:
12053301
Vacuum Meter Art. No.:
11985301
Flexible pipe complete with nipple L=900 Art. No.:
01760010
Oil de-aerator OV Combi Art. No.:
11748902
Oil de-aerator T110I Art. No.:
11748901
Liquid pressure gauge Art. No.:
11031804
