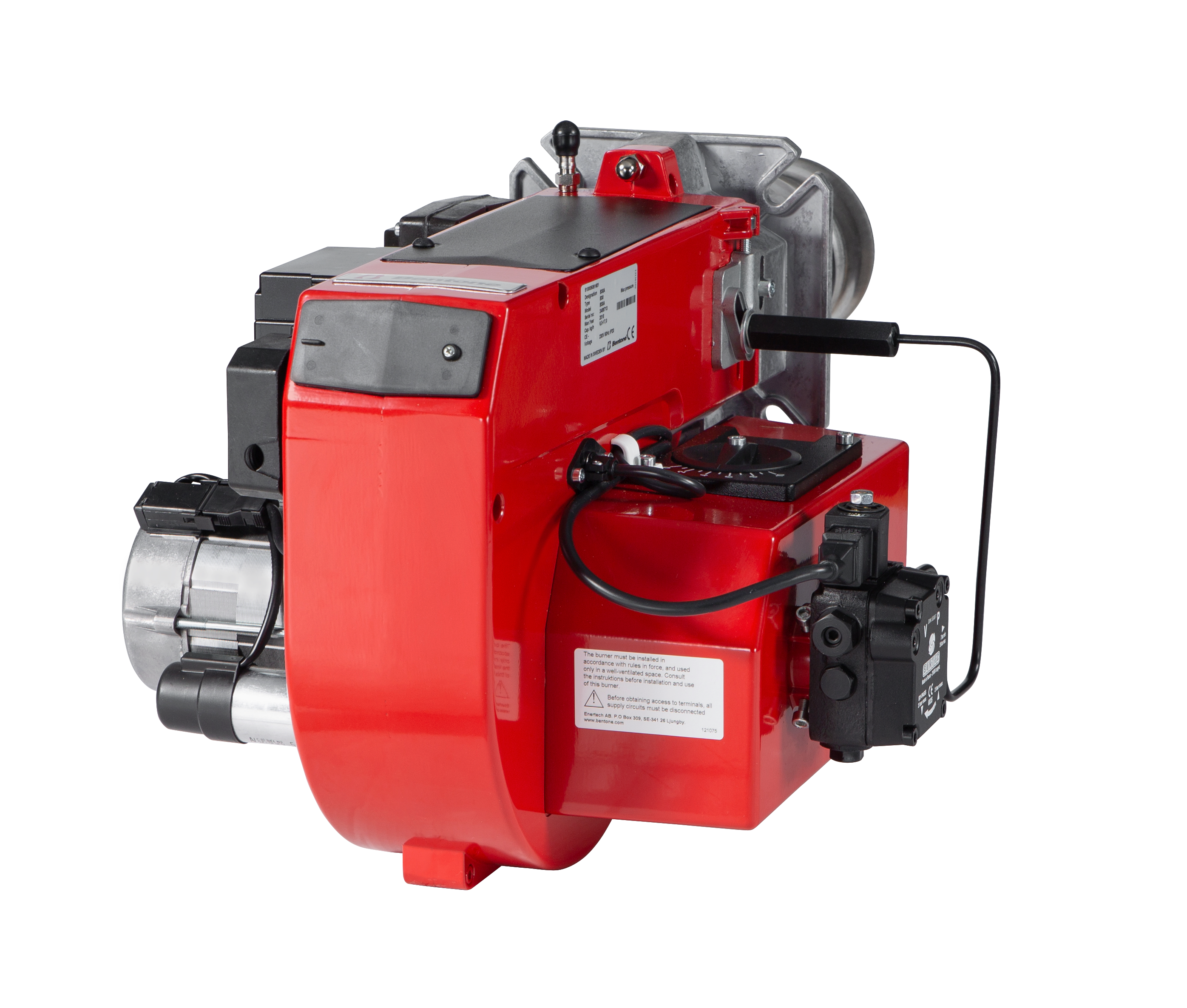

Bentone B 30


Bentones family of intermediate burners are well designed and robust burners aimed for an industrial process or heating of semi large commercial buildings. For many years these burners has been the backbone of Bentone and we have constantly modernized our burners to meet the new demands of modern regulations and lower NOx levels.

Capacity: 4,5-17 kg/h (55-200 kW)

Probably the worlds most succesful burner with
endless installations in various applications. The
original design goes back to the ’70s but as with
many of our burners we have constantly modified
and perfected our design over the years. The

Ecodesigned approved according to class 4 (ErP)

Advantages
  • Energy saving
  • Low fuel consumption
  • Compatible with environmental requirements
  • Designed for easy maintenance
  • Approved according to EN 267
  • Hydraulic air adjustment
  • Servo motor air adjustment
  • Available with hydraulic air adjustment or air damper motor
  • Approved for RME (FAME)
  • Available with LMV37
  • Available according to Annex J/K
Models
Model Art. No. Information
B30A510005051601Capacity: 6,0-17,0 kg/h (72-200 kW)
Bentone B 30 2A520003752601Capacity: 6,0-17,0 kg/h (72-200 kW)
Bentone B 30 A510005251602Capacity 6,0-17,0 kg/h (72-200 kW)
Bentone B 30 A L222 LMO14 RME510005151604Capacity: 6,0-17,0 kg/h (71,2-201,6 kW)
Bentone B 30 A2.2 L350 LMO24 RME520004652607Capacitet 6,0-17,0 kg/h (72-200 kW)
Bentone B 30 A2.2H520003952602Capacity: 4,5-15,0 kg/h (55-175 kW)
Bentone B 30 A2.2HL520004252605Capacity: 4,5-15,0 kg/h (55-175 kW)
Bentone B 30 AL510005351603Capacity: 6,0-17,0 kg/h (72-200 kW)
Bentone B30 A L 222 BP-S3 RME J/K IP40510005951606Capacitet 6,0-17,0 kg/h (72-200 kW)
Bentone BF 30 MF LP14-36-41396
Accessories
Single-pole thermostat for control Art. No.:
12075901
Double-pole thermostat for operation Art. No.:
12076001
Oil de-aerator OV Combi Art. No.:
11748902
Vacuum Meter Art. No.:
11985301
Oil de-aerator T110I Art. No.:
11748901
Hose for oil G1/4" 900 G1/4" straight Art. No.:
01760011
Flowmeter for oil VZ0 1/8" without pulse contact Art. No.:
119212606
Liquid pressure gauge Art. No.:
11031804
Oil filter Art. No.:
11429303
Solenoid valve kit for continuous operatation (protecting the burner head) Art. No.:
11923004
Solenoid valve kit for continuous operatation (protecting the burner head) Art. No.:
11923003
