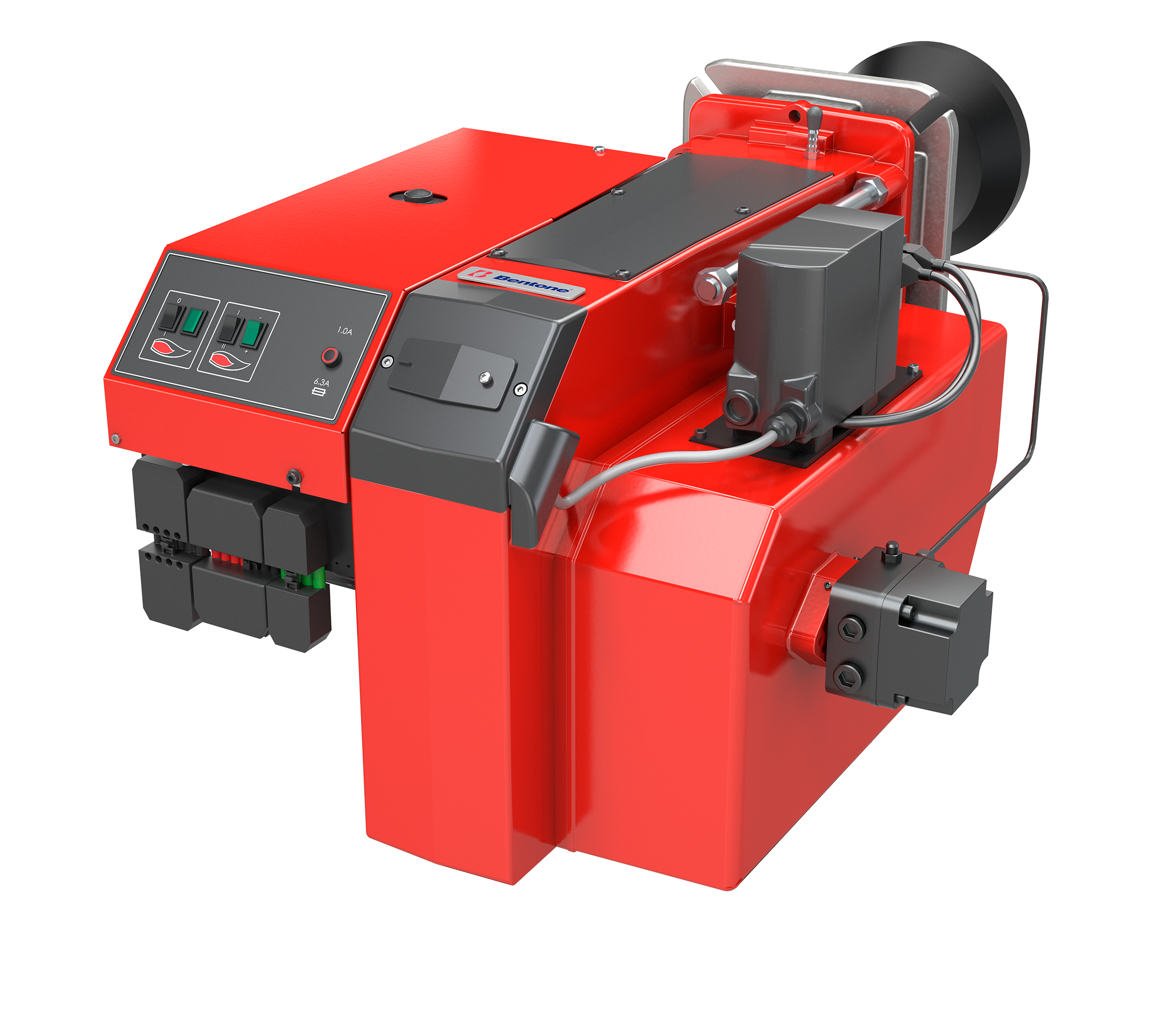

Bentone B 55


Bentones top range of burners are designed and constructed for steam boilers in larger commercial buildings and industrial applications such as kilns and industrial ovens. They are well known for their high efficiency in combination with a low fuel consumption.

Capacity: 13-67,5 kg/h (155-800 kW)

Our top range of burners are well designed for the
toughest environments and will give you a troublefree
operation for years.

Approved according to class 3 (MCP)

Advantages
  • Energy saving
  • Low fuel consumption
  • Compatible with environmental requirements
  • Designed for easy maintenance
  • Approved according to EN 267
  • Hydraulic air adjustment
  • Servo motor air adjustment
  • Approved for RME (FAME)
  • Available with LMV37
  • Available according to Annex J/K
Models
Model Art. No. Information
Bentone B 55-2 L303 LMO24 RME650005765002Capacity: 13,0-67,5 kg/h (155-800 kW)
Bentone B 55-2 LMO24650004465601Capacity: 13,0-67,5 kg/h (155-800 kW)
Bentone B 55-2 LMO24650005165601Capacity: 13,0-67,5 kg/h (155-800 kW)
Bentone B 55-2H LMO24650004565601Capacity: 12,7-67,7 kg/h (151-807 kW)
Bentone B 55-2H LMO24650004965601Capacity: 13,0-67,5 kg/h (155-800 kW)
Bentone B 55-3R BP-23660001666601Capacity: 13,0-64,0 kg/h (155-760 kW)
Bentone B 55-3R BP-S3 R316660001866602Capacity: 13,0-64,0 kg/h (155-760 kW)
Accessories
Double-pole thermostat for operation Art. No.:
12076001
Flowmeter for oil VZ08 1/4" Art. No.:
11921602
Vacuum Meter Art. No.:
11985301
Single-pole thermostat for control Art. No.:
12075901
Hose for oil G3/8" 1500 G3/8" Art. No.:
01760012
Electronic power controller Art. No.:
11978203
Nipple R1/4”xG3/8” Art. No.:
11027901
Nipple R3/8”xG3/8” Art. No.:
11027902
Oil de-aerator Twin Art. No.:
11748903
Flowmeter for oil VZ0 1/8" without pulse contact Art. No.:
119212606
Liquid pressure gauge Art. No.:
11031805
Oil filter ½” Art. No.:
11429304
Solenoid valve kit for continuous operatation (protecting the burner head) Art. No.:
11923003
