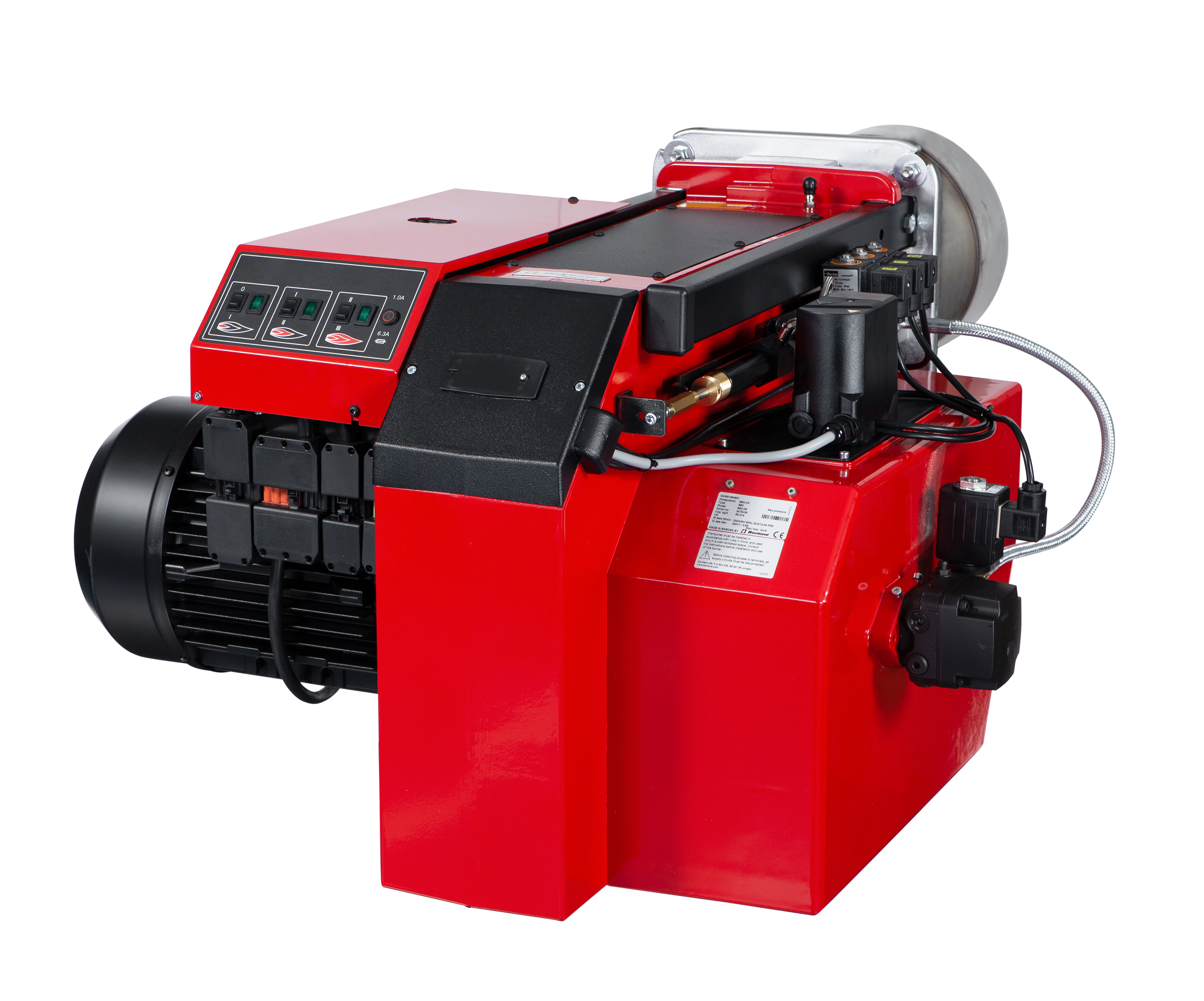

Bentone B70


B70 is an industrial burner designed for industrial applications but can also be used for heating in commercial buildings.

Capacity: 41-139 kg/h (490-1650 kW)

The 3-stage burner is equipped with three nozzles for efficiency control and the first nozzle is used for troublefreea, soft start with no pulsation. Electronic thermostat is recomended when using the 3-stage regulation.

Hydraulic adjustment of the nozzle assembly as standard.

Advantages
  • Energy saving and compatible with environmental requirements
  • Quiet in operation and designed for easy maintenance
  • Reliable and trouble free
  • Designed and approved in accordance with the European standard EN 267
  • Suitable for high resistance and condensing boilers
  • Industry standard components easily available
  • Plug-in contact facilitates the installation
  • Low fuel consumption
  • Hydraulic air adjustment as standard and airdamper motor
  • Available in several standard models, and approved for RME
  • Available according to Annex J/K IP54
Models
Model Art. No. Information
Bentone B70-2/3630001663601Capacity: 41-139 kg/h (490-1650 kW)
Bentone B70-3 BP630002563601
Bentone B70-3 R316T630000663602Capacity: 41-139 kg/h (486-1649 kW)
Bentone B70-3R BP-S3630002763604
Bentone B70-3R BP-S3 R316630002663602
Bentone B70i-3 RME J/K IP54630002463002Capacity: 41-139 kg/h (490-1650 kW)
Accessories
Flowmeter for oil VZ015 1/2" Art. No.:
11921605
Double-pole thermostat for operation Art. No.:
12076001
Flowmeter for oil VZ08 1/4" Art. No.:
11921602
Vacuum Meter Art. No.:
11985301
Single-pole thermostat for control Art. No.:
12075901
Hose for oil G3/8" 1500 G3/8" Art. No.:
01760012
Electronic power controller Art. No.:
11978203
Nipple R3/8”xG3/8” Art. No.:
11027902
Nipple R1/4”xG3/8” Art. No.:
11027901
Oil de-aerator Twin Art. No.:
11748903
Liquid pressure gauge Art. No.:
11031805
Oil filter ½” Art. No.:
11429304
