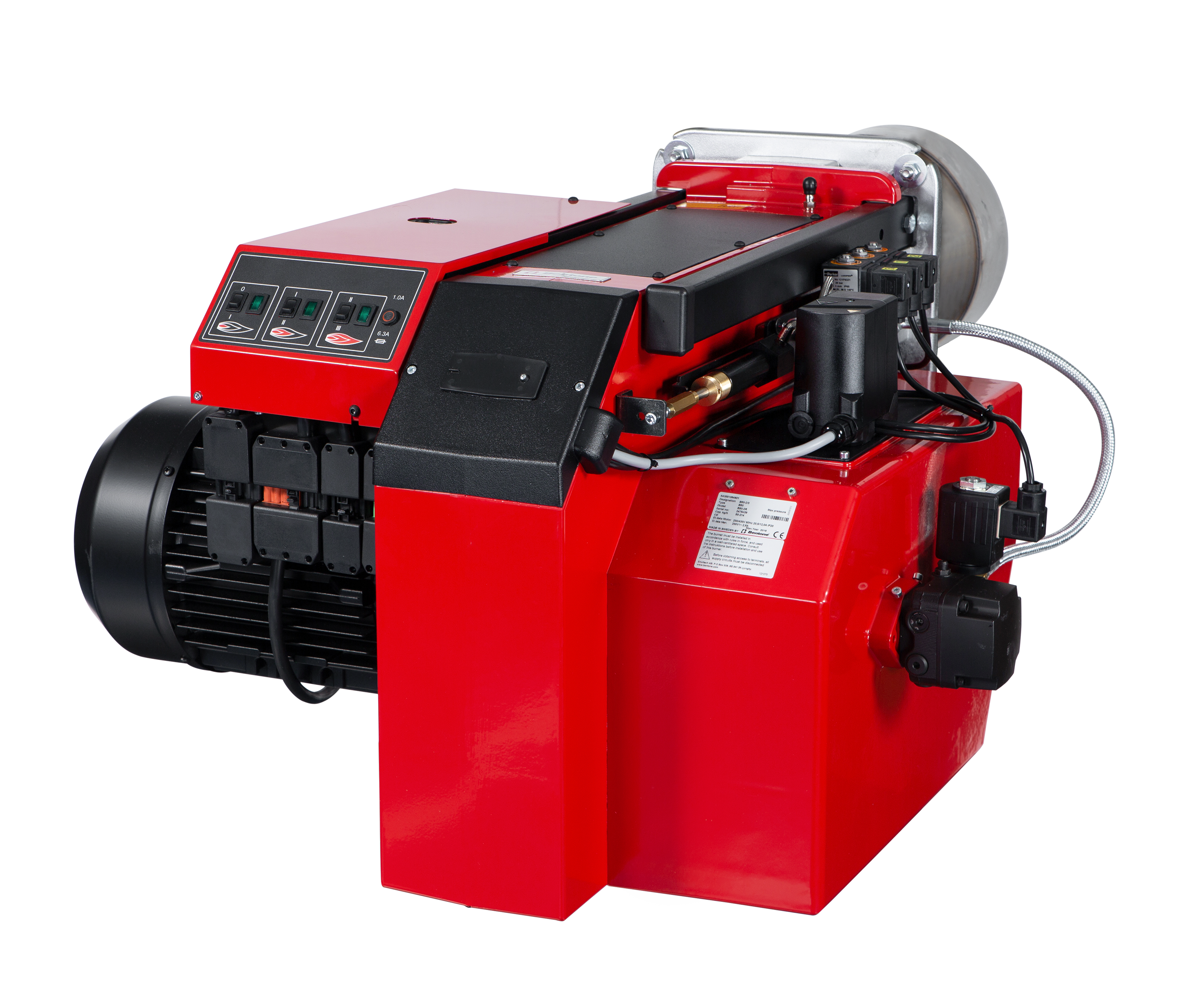

Bentone B 80


You will find our larger burners operating on boilers for years all over the world and our aluminium housings for our burners are designed and manufactured for tough environments. Lowering emissions is part of Bentones strategies and one of our goal towards a green future. Low fuel consumption combined with high degree of efficiency will decrease carbon emissions and increse performance.

Capacity: 50-211 kg/h (600-2500 kW)

Our top range of burners are well designed and designed
for the toughest environments and will give you a
troublefree operation for years.

Approved according to class 2 (MCP)

Advantages
  • Energy saving and compatible with environmental requirements
  • Quiet in operation and designed for easy maintenance
  • Reliable and trouble free
  • Designed and approved in accordance with the European standard EN 267
  • Suitable for high resistance and condensing boilers
  • Industry standard components easily available
  • Plug-in contact facilitates the installation
  • Low fuel consumption
  • Hydraulic air adjustment as standard and air damper motor
  • Approved for RME (FAME)
  • Available according to Annex J/K
  • Available with LMV37
Models
Model Art. No. Information
Bentone B 80-3R BP-S3640002064601Capacity: 50,0-211,0 kg/h (600-2500 kW)
Bentone B 80-3R L396 BP-S3 R316640002364602Capacity: 50,0-211,0 kg/h (600-2500 kW)
Bentone B 80-3R L696 BP-S3640002164604Capacity: 50,0-211 kg/h (600-2500 kW)
Bentone B 80i-3R L396 LMV IP54 RME640001964002Capacity: 50,0-211,0 kg/h (600-2500kW)
Accessories
Flowmeter for oil VZ015 1/2" Art. No.:
11921605
Double-pole thermostat for operation Art. No.:
12076001
Flowmeter for oil VZ08 1/4" Art. No.:
11921602
Vacuum Meter Art. No.:
11985301
Single-pole thermostat for control Art. No.:
12075901
Hose for oil G3/8" 1500 G3/8" Art. No.:
01760012
Electronic power controller Art. No.:
11978203
Nipple R3/8”xG3/8” Art. No.:
11027902
Nipple R1/4”xG3/8” Art. No.:
11027901
Oil de-aerator Twin Art. No.:
11748903
Liquid pressure gauge Art. No.:
11031805
Oil filter ½” Art. No.:
11429304
