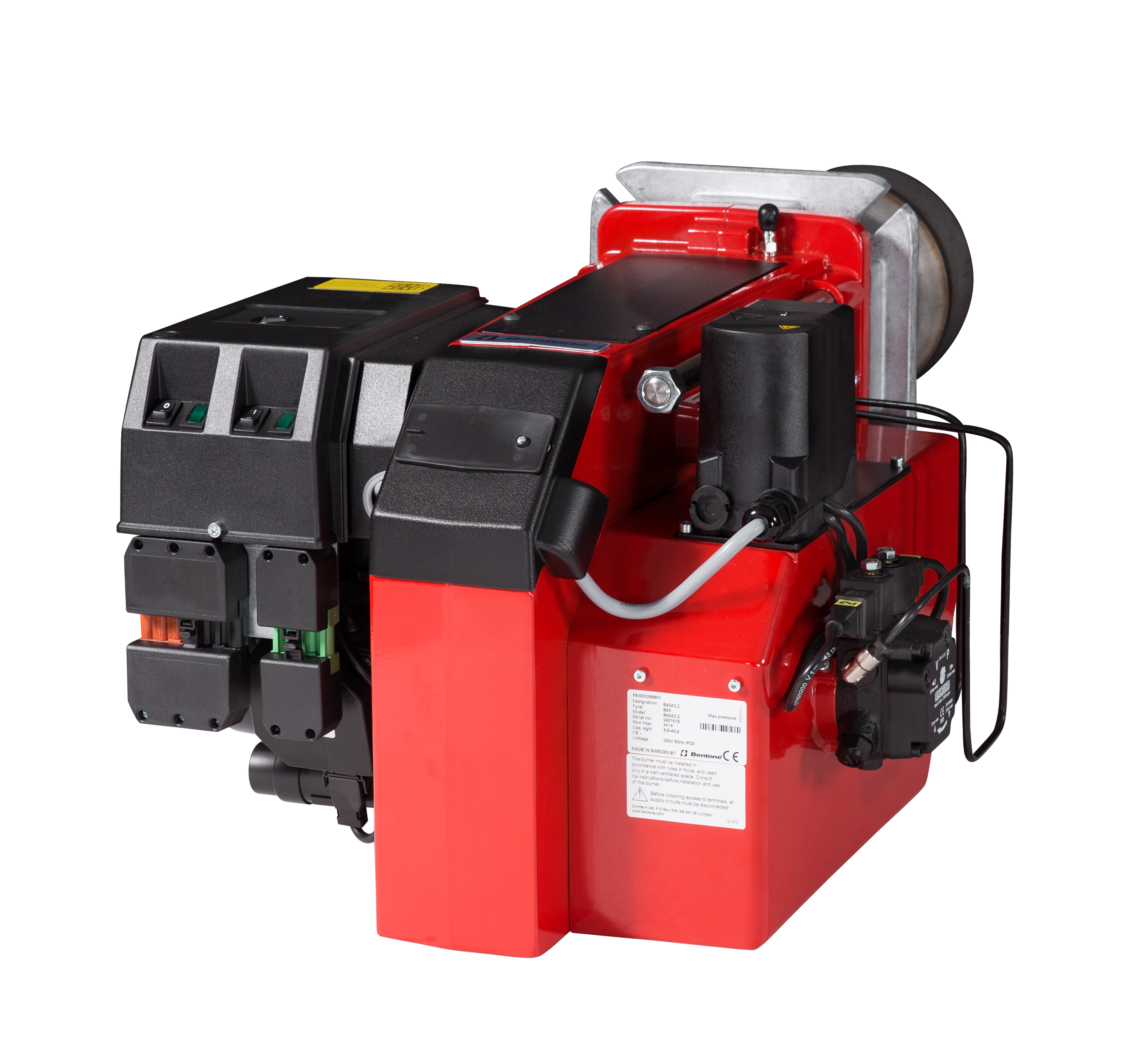

Bentone B 45


Bentones family of intermediate burners are well designed and robust burners aimed for an industrial process or heating of semi large commercial buildings. For many years these burners has been the backbone of Bentone and we have constantly modernized our burners to meet the new demands of modern regulations and lower NOx levels.

Capacity: 8,5-47 kg/h (96-557 kW)

Probably the worlds most succesful burner with
endless installations in various applications. The
original design goes back to the ’70s but as with
many of our burners we have constantly modified
and perfected our design over the years. The

Approved according to class 3 (ErP)

Advantages
  • Energy saving and compatible with environmental requirements
  • Quiet in operation and designed for easy maintenance
  • Reliable and trouble free
  • Designed and approved in accordance with the European standard EN 267
  • Industry standard components easily available
  • Suitable for high resistance and condensing boilers
  • Plug-in contact facilitates the installation
  • Low fuel consumption
  • Available with hydraulic air adjustment or air damper motor
  • Approved for RME (FAME)
  • Available with LMV37
  • Available according to Annex J/K
Models
Model Art. No. Information
Bentone B 45 A2.2 L270 LMO24560000256601Capacity: 8,5-45,5 kg/h (101-540 kW)
Bentone B 45 A2.2 L270 LMO24 RME560003656603Capacity: 8,5-45,5 kg/h (101-540 kW)
Bentone B 45 A2.2 L370 LMO24560002256601Capacity: 8,5-45,5 kg/h (101-540 kW)
Bentone B 45 A2.2 L370 LMO24 RME560004456603
Bentone B 45 A2.2H LMO24560000356601Capacity: 8,5-45,5 kg/h (101-540 kW)
Bentone B 45i A2.2H L270 LMV J/K IP54560004256604Capacity: 8,5-45,5 kg/h (101-540 kW)
Accessories
Seal-cleaning filter Art. No.:
11480401
Flowmeter for oil VZ0 1/8" without pulse contact Art. No.:
119212606
Liquid pressure gauge Art. No.:
11031805
Nipple R1/4”xG3/8” Art. No.:
11027901
Seal-cleaning filter Art. No.:
12108601
Strainer Art. No.:
12108522
Hose for oil G1/4" 900 G1/4" straight Art. No.:
01760011
Oil de-aerator OV Combi Art. No.:
11748902
Immersion heating Art. No.:
92083201
Vacuum Meter Art. No.:
11985301
Electronic power controller Art. No.:
11978203
Single-pole thermostat for control Art. No.:
12075901
Double-pole thermostat for operation Art. No.:
12076001
Diaphragm 15 mm Art. No.:
11910202
Seal-cleaning filter Art. No.:
11480402
Oil filter ½” Art. No.:
11429304
Gasket cover Art. No.:
12086301
Solenoid valve kit for continuous operatation (protecting the burner head) Art. No.:
11923003
