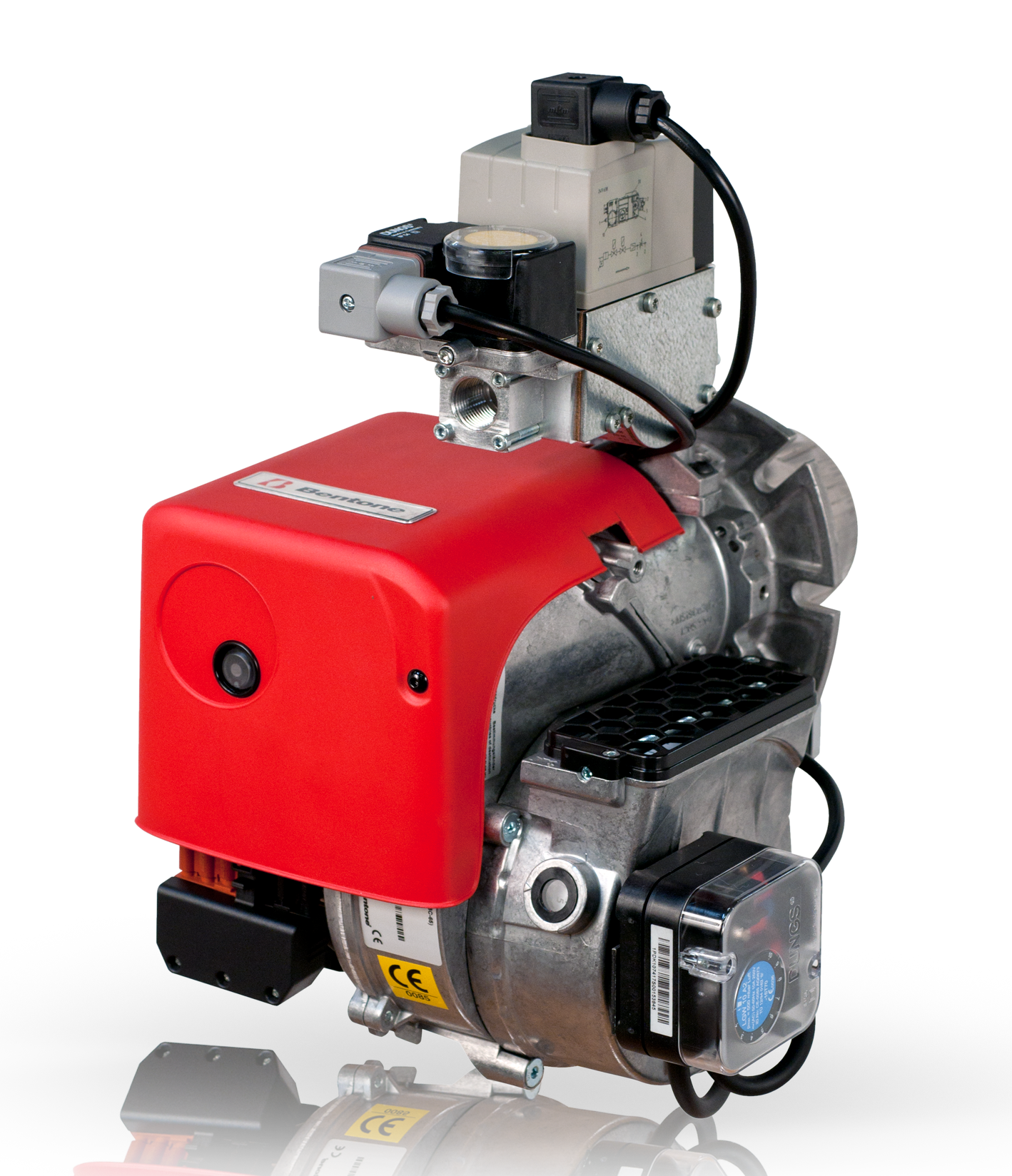

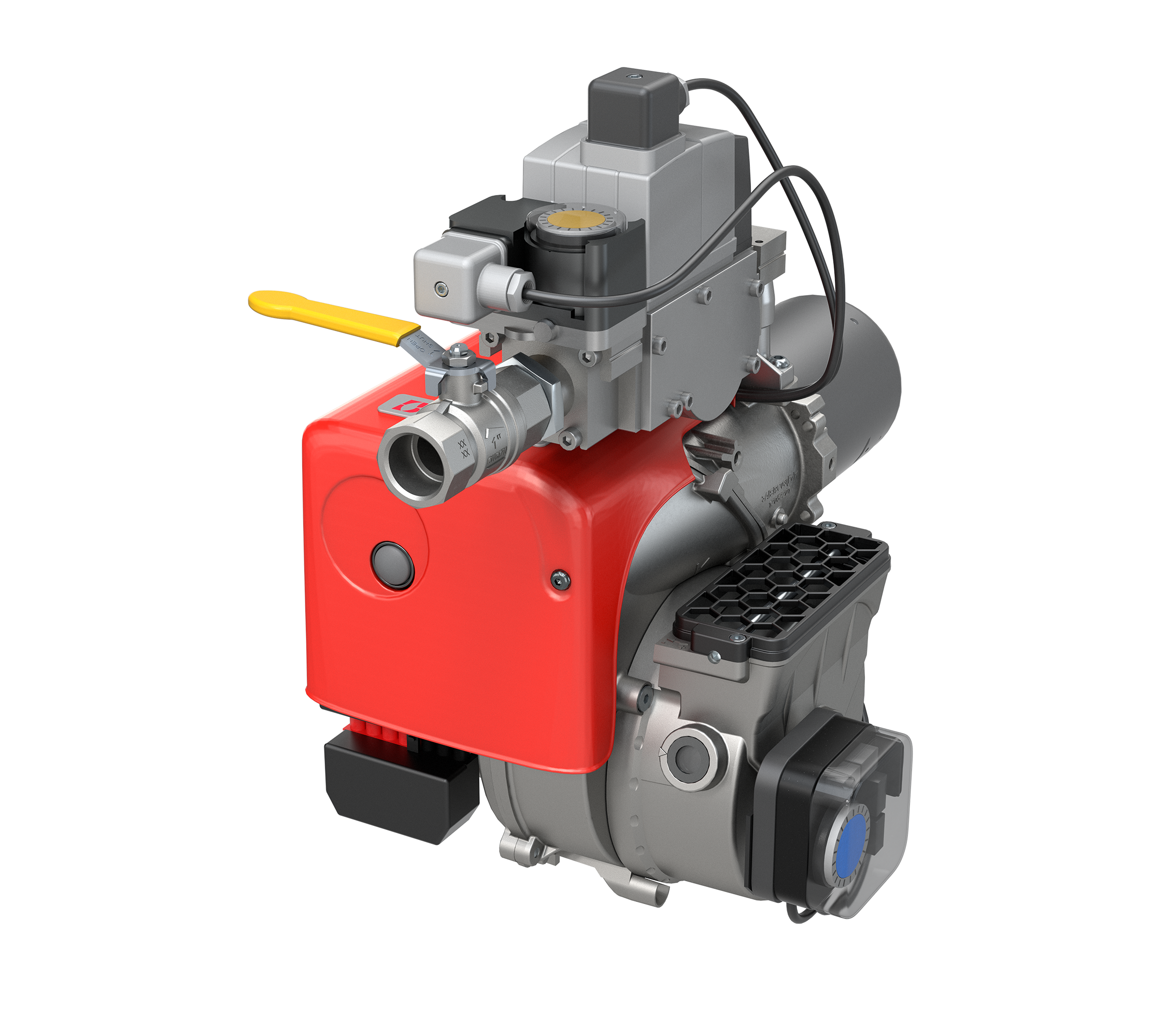

Bentone BFG1


Available in many versions up to 100 kW for different types of gas. Ducted or conventional air inlet.

Suitable for high resistance/condensing boilers. Designed for 1- stage or 2- stage operation. Industry standard components are used. A soft pulsation free start. Wide adjustment range and high efficency with constant combustion values. High flexibility with reference to different options.

Also available in biogas versions.
Biogas will affect the output and the components of the burner.
Please contact Bentone for more information about biogas operation.

Advantages
  • Energy saving and compatible with environmental requirements
  • Quiet in operation and designed for easy maintenance
  • Reliable and trouble free
  • Designed and approved in accordance with the European standard EN 676
  • Suitable for High Resistance/Condensing boilers
  • Designed for on/off and 2-stage operation
  • Plug-in contact facilitates the installation
  • High flexibility with reference to different options
  • Two valves, slow opening
  • Available for natural gas, LPG and biogas
  • When biogas is used, Bentone shall always be contacted
Models
Model Art. No. Information
BFG1 H1 HC354012027601Capacity: 15,0 - 60,0 kW, Gas: LPG+Natural, Controls: LME11, Multiblock: MBC-65
BFG1 H2354022031601Capacity: 15,0 - 60,0 kW, Gas: LPG+Natural, Controls: LME11, Multiblock: GB-LD 055
BFG1 H2354022011601Capacity: 15,0 - 60,0 kW, Gas: LPG+Natural, Controls: LME11, Multiblock: MBC-65
BFG1 H2354022022601Capacity: 15,0 - 60,0 kW, Gas: LPG+Natural, Controls: LME11, Multiblock: MBC-120
BFG1-2 H335503101060125,0 - 100,0 kW
BFG1-2 H335503104260125,0 - 100,0 kW
BFG1H335403101360125,0 - 100,0 kW
BFG1H335403201160225,0 - 100,0 kW
BFG1H335403102460125,0 - 100,0 kW
BFG1H3 HC35403101960125,0 - 100,0 kW
Accessories
Automatic air damper Art. No.:
12065601
